Indoor Die-cast Aluminum Front free design Service LED Cabinet

This indoor LED cabinet adopts premium die-cast aluminum structure with front maintenance design and wireless connection architecture, widely applied in conference rooms, control centers, exhibition halls, high-end retail stores and studio display walls.

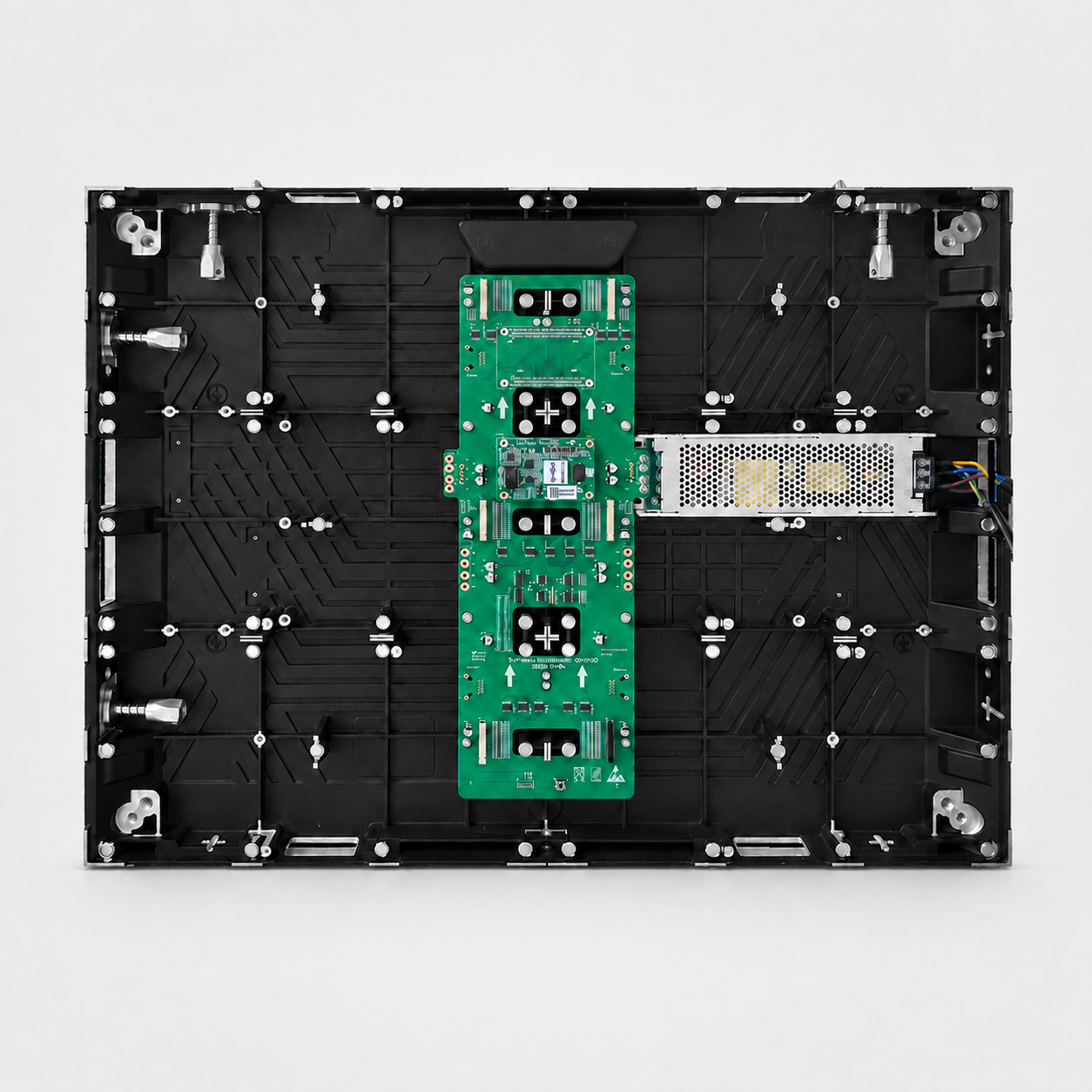

Product Structure

Core Advantages & Features

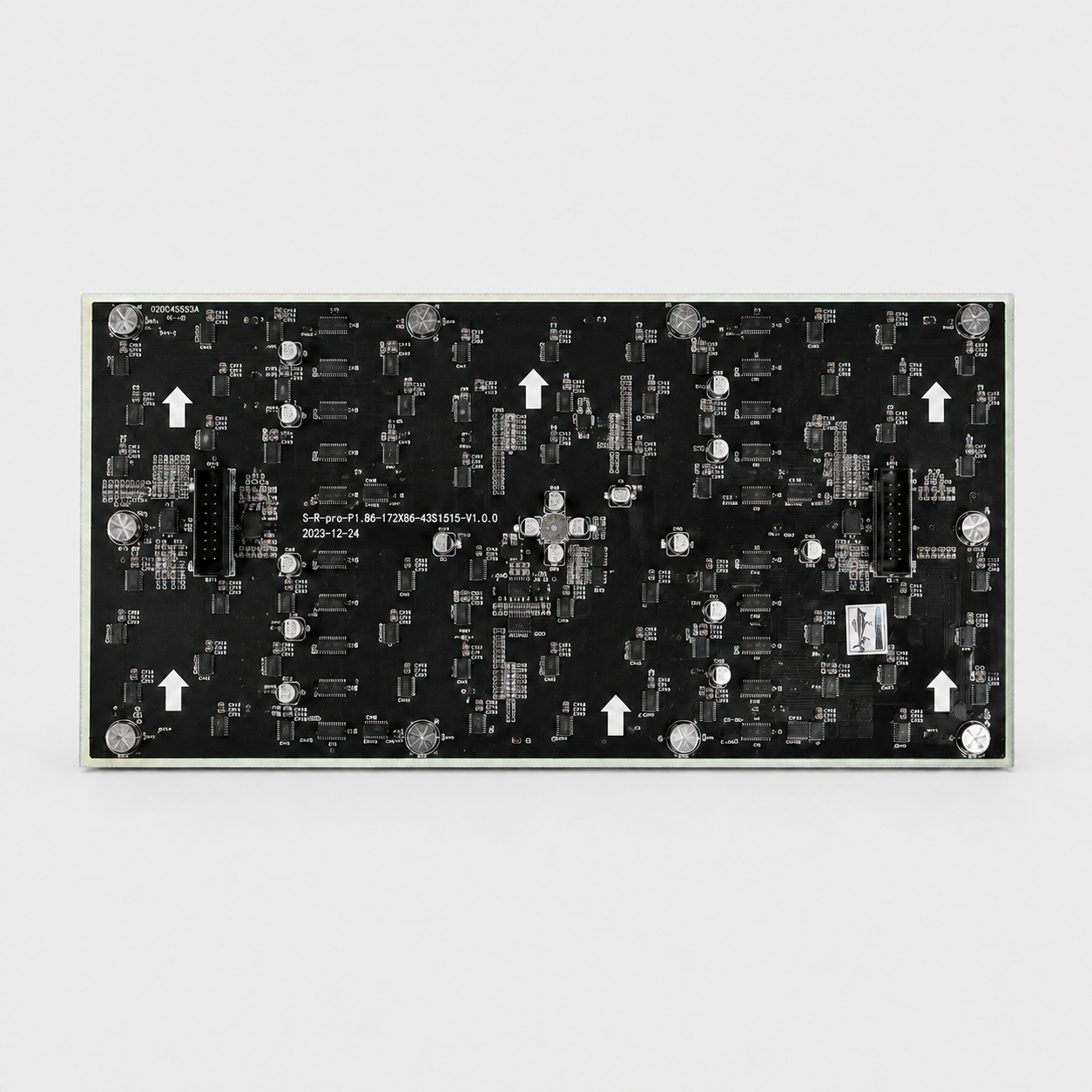

1. Shell-less Module Hard Connection & Wireless Wiring Structure

Modules apply shell-free rigid connection design without traditional connecting wires between modules.

• Simplify on-site installation drastically, eliminate risks of wrong wiring & loose cables;

• Assemble with ultra-narrow splicing gap, greatly improve overall flatness of the entire LED screen;

• Reduce hidden troubles caused by wire aging and wiring faults for long-term usage.

2. Dual Backup Design for Power Supply & Receiving Card

Equipped with redundant backup system for both power supply and receiving control card:

• When a single power unit or receiving card fails accidentally during operation, the backup part will automatically take over the work instantly without screen blackout, flicker or shutdown.

• Guarantee stable continuous operation of the whole display wall, perfectly fit scenarios requiring uninterrupted working such as command centers and important conference venues.

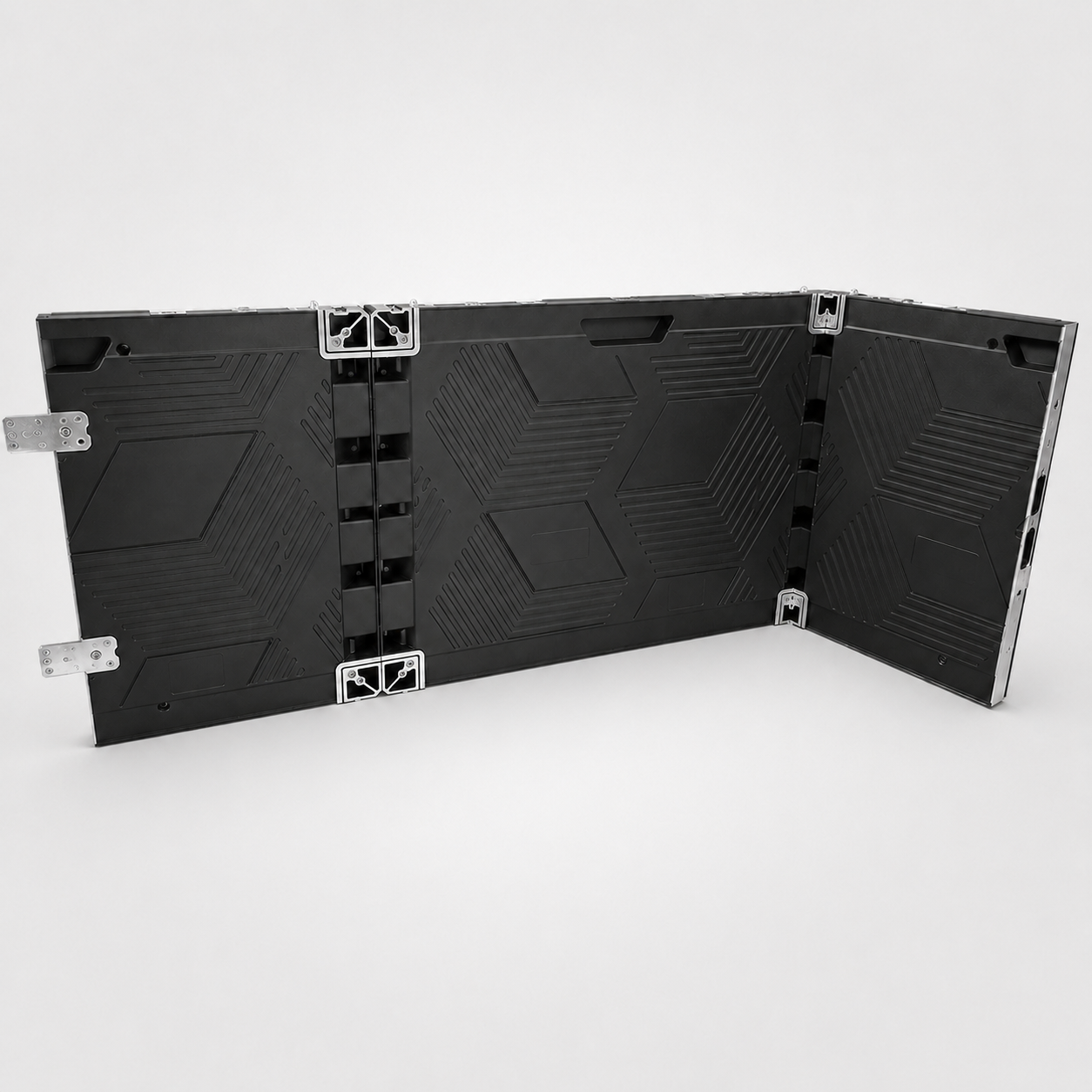

3. Seamless 90° Corner Splicing Support

The cabinet structure supports direct 90° right-angle assembly, realizing seamless corner splicing without gaps, dead zones or uneven seams at corners.

• It is flexible to build L-shaped, U-shaped, enclosed wrap-around creative display walls to meet diversified creative display layout demands.

Extra Structural Highlights

1. Die-cast aluminum cabinet body features lightweight, high rigidity & excellent heat dissipation, effectively lower screen operating temperature and extend LED lamp lifespan;

2. Full front maintenance design: modules, power supplies and receiving cards can be repaired & replaced from the front side of the screen wall, no reserved maintenance space needed behind the screen, save indoor space greatly;

3. Quick lock splicing structure enables fast assembly and disassembly, shortening engineering construction period.

Application Scenarios

High-end conference rooms, command & monitoring centers, museum exhibition screens, shopping mall creative curved/angled displays, television studios, corporate exhibition halls.
