Flexible Curved LED Cabinet Introduction

Product Highlights

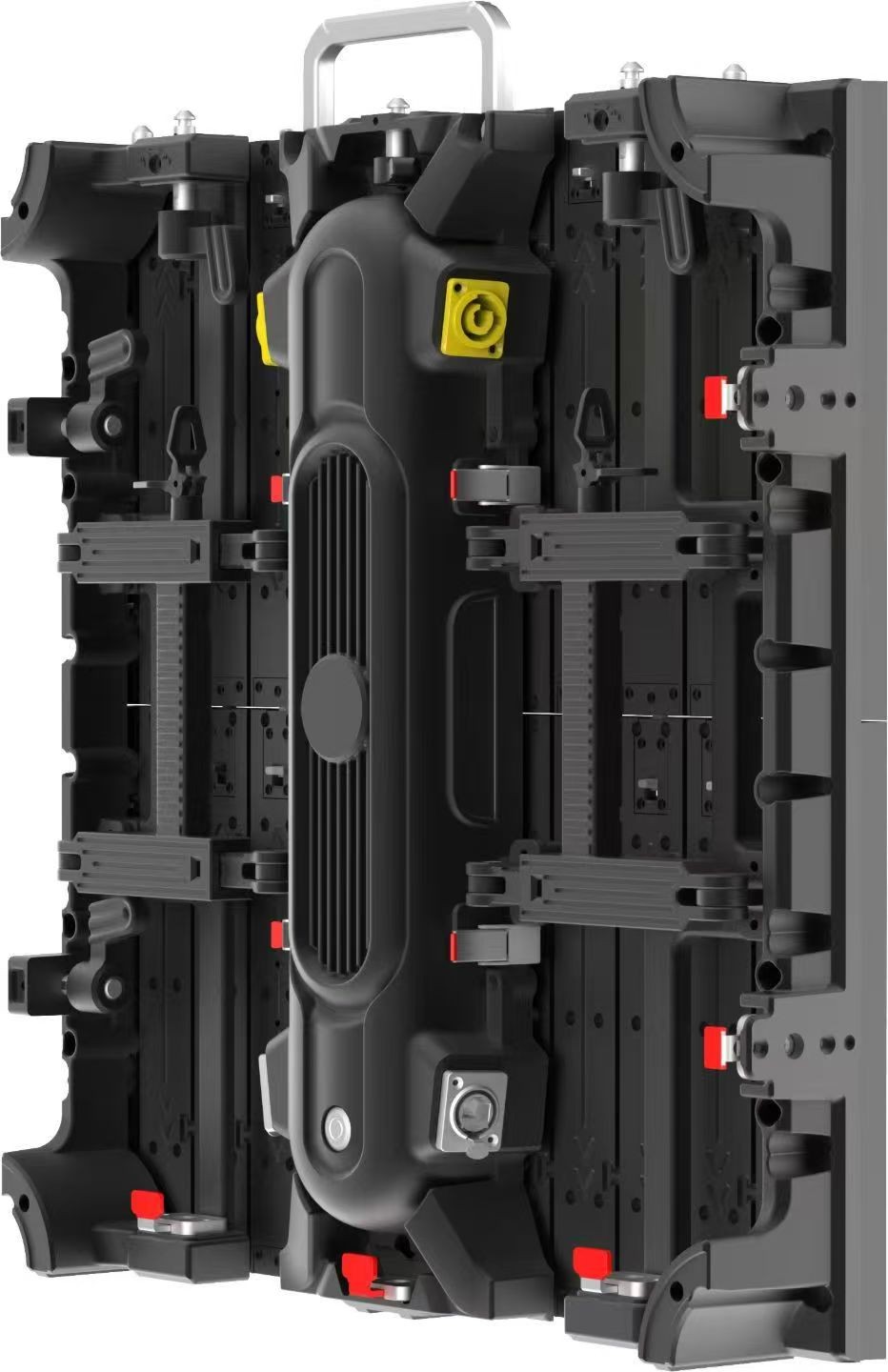

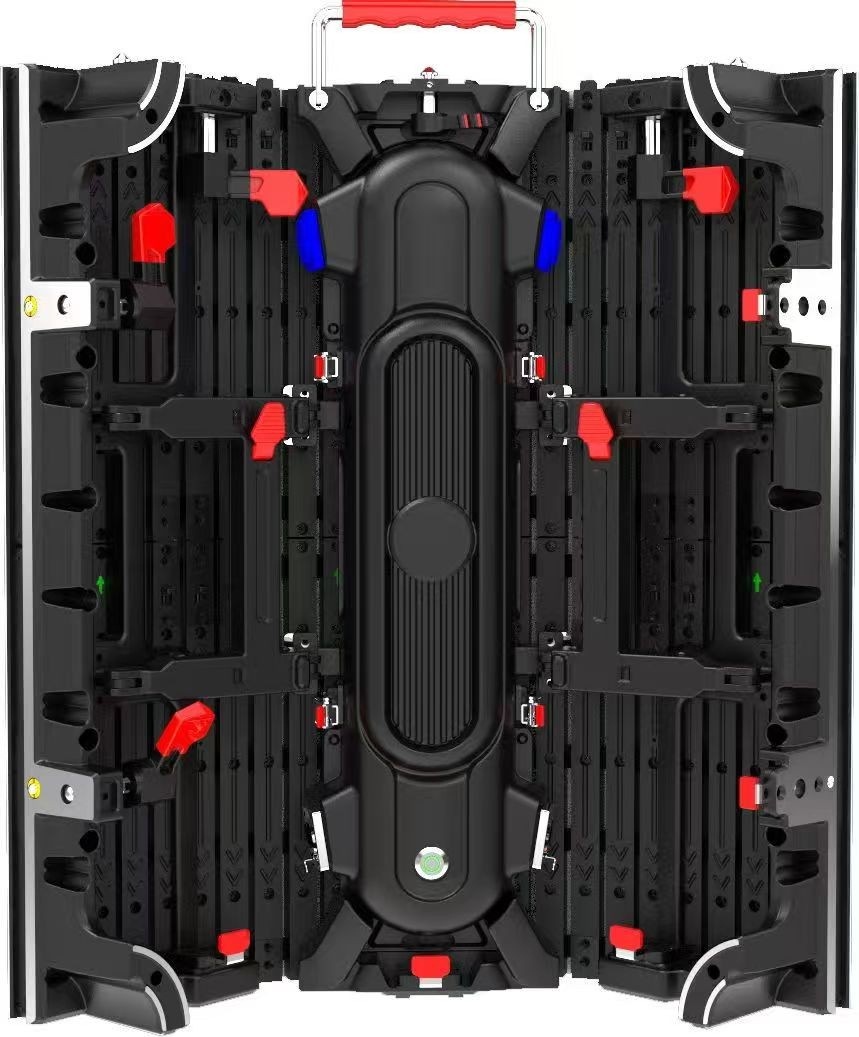

This 500×500mm flexible rental cabinet supports concave inner arc & convex outer arc forming freely. It is tailor-made for stage rental, event exhibition, wedding performance and commercial activities. With wireless modular structure, front maintenance design and quick lock splicing system, it greatly improves installation efficiency and reduces labor costs for rental projects.

Core Features

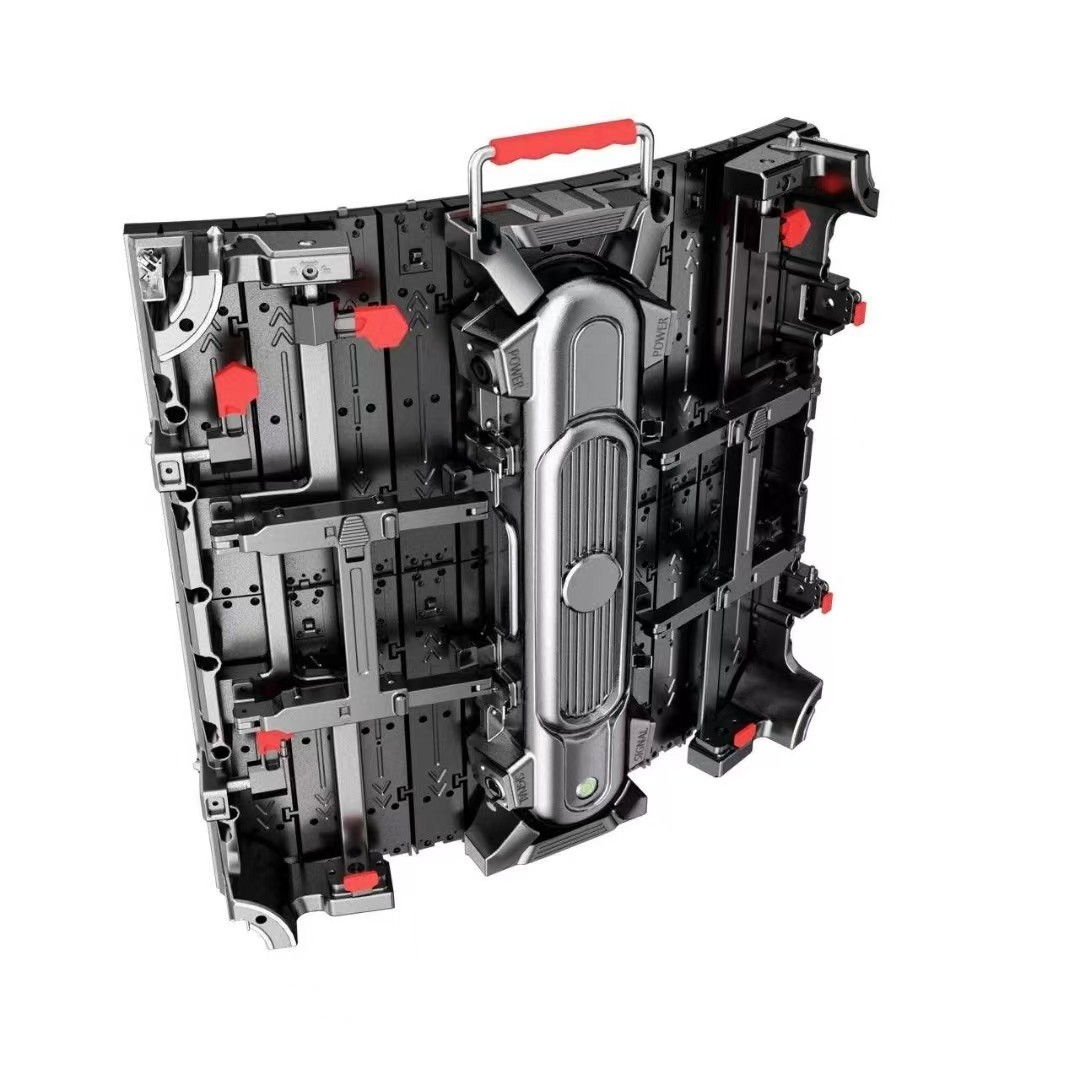

Dual Curving Design: Inner Arc & Outer Arc Freely Combined

The flexible cabinet structure supports two molding modes:

• Inner arc bending: Assemble into concave circular screen, cylindrical inner wall screen, tunnel-shaped background wall;

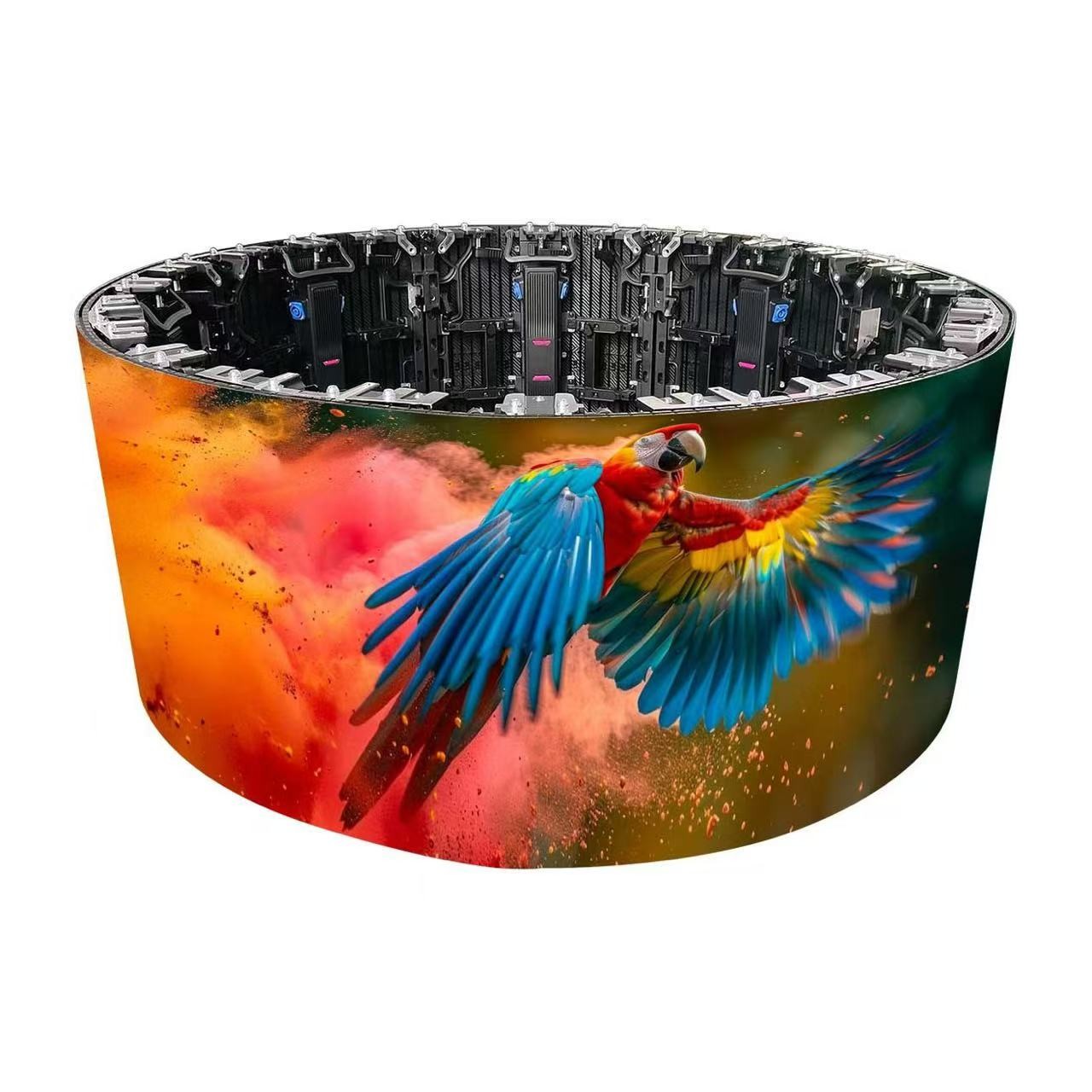

• Outer arc bending: Splice into convex curved screen, spherical outer surface, circular wrap-around screen.

• Rental companies can flexibly match different curved shapes according to event design demands without custom cabinets separately, one cabinet meets all curved styling needs.

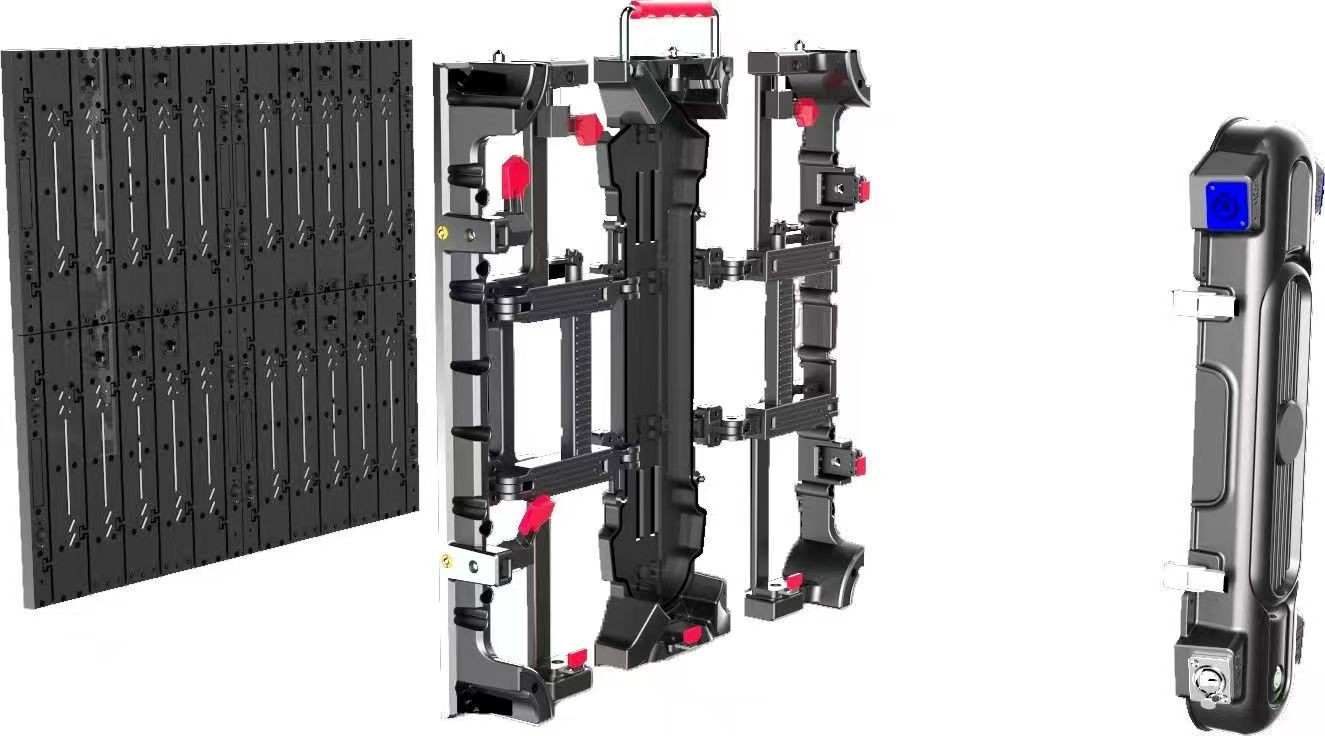

 Wireless Modular Structure + Front Maintenance, Easy Repair

Adopts wireless connection between cabinet and modules, eliminates messy internal wiring inside the cabinet, avoids hidden dangers of loose wires during frequent rental disassembly;

• Modules support full front maintenance: technicians can replace faulty lamp modules directly from the front side of the screen without removing the entire screen wall;

• Independent power box is wholly detachable. Power supply, receiving card can be disassembled and maintained separately, maintenance speed is increased by more than 60%, lowering rental after-sales time cost.

Quick Lock Splicing System, Save Labor & Installation Time

Equipped with integrated quick-lock fasteners around each cabinet:

• Operators only need to rotate the red quick-lock handles to complete seamless splicing between cabinets. No tools are required for assembly. Compared with traditional bolt-type rental cabinets, installation manpower and time cost are cut down significantly, perfect for tight-schedule stage rental projects.

Standard 500×500 Rental Size, High Versatility

Uniform 500mm×500mm standard cabinet size, compatible with most mainstream rental trusses and brackets on the market. Match P2.604 / P2.97 / P3.91 three pitches to satisfy close-view high-definition performance and medium-distance large backdrop usage respectively.

Application Scenarios

Stage curved background screen, concert wrap-around LED wall, wedding curved backdrop, exhibition booth cylindrical display, brand event curved advertising screen, hotel banquet creative curved screen, indoor circular immersive display.
