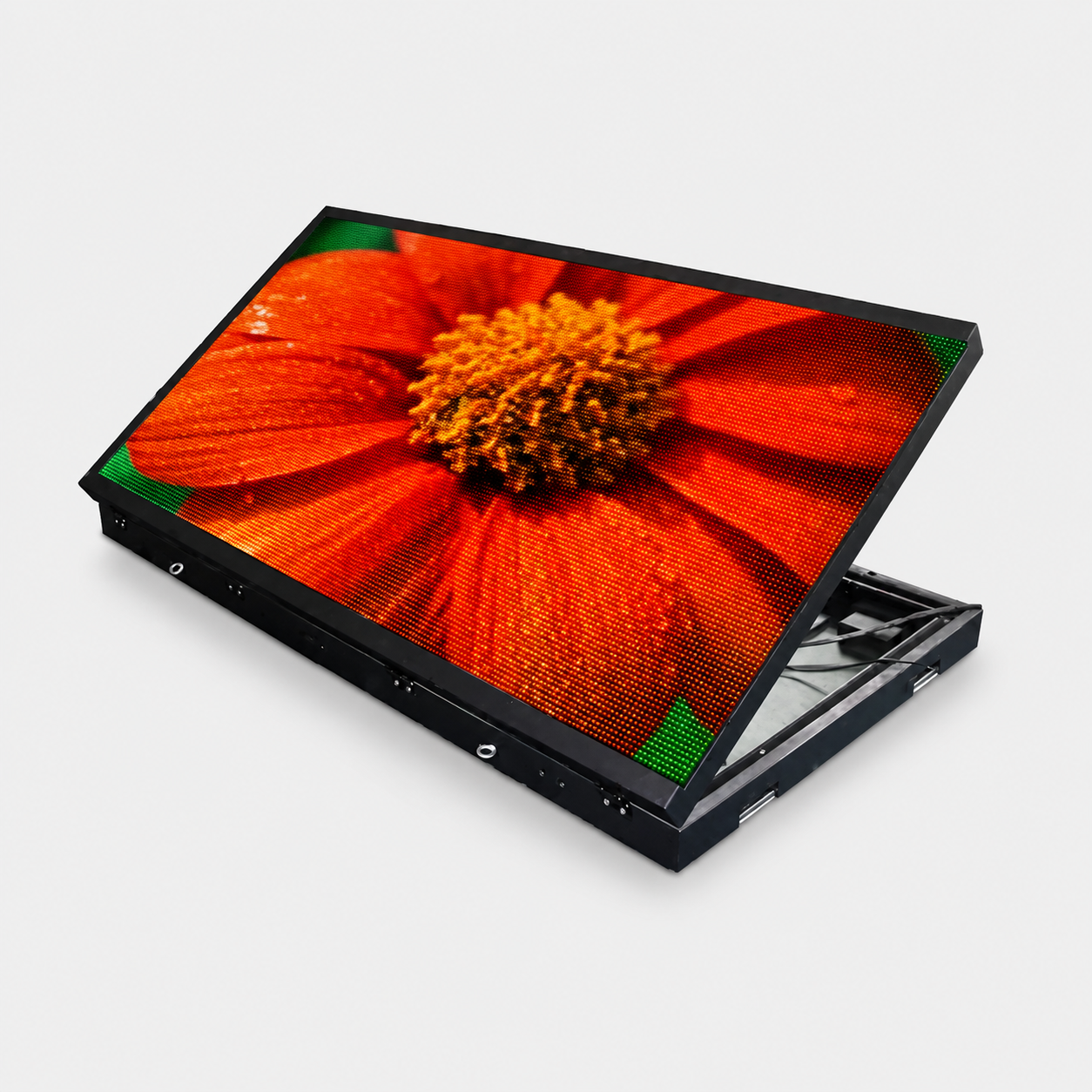

front open led cabinet customized
Product Introduction
Product Features
For Outdoor fixed installation application;
SMD LED Display;
Weatherproof to IP65/65 standards;
High resolution images and long lifetime;
Easily configured for various size and aspect ratios;
Wide viewing angle;
Brightness from 5500 nits onwards.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | P4-SMD |
| Application | Outdoor |
| Pitch | 4mm |
| Pixel density | 62500 |
| LED density | 62500 |
| Brightness | 6000nit |
| Color temperature | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. |
| Module size(W*H) | 320*160mm |
| Module resolution(W*H) | 80*40pixel |
| Module Qty(W*H) | 3*6=18pcs |
| Cabinet size(W*H) | Can customized different Iron cabinet size |
| Cabinet depth | 180mm |
| Cabinet sq. meter | 0.9216sq.m |
| Cabinet material | Epoxy paint coated Cold Steel |
| Cabinet weight | 40kg/sqm |
| Cabinet mode | Fixed installation |
| Service access | Front service |
| Ingress protection (front/rear) | IP65/65 |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD |
| Recommended minimum viewing distance | 3m |
| Recommended best viewing distance | 4~200m |
| Colors | 281 Trillion |
| Grey scale (linear) | 65536 levels per color |
| Brightness control | 100Levels |
| Contrast ratio | 1000:1 |
| Processing depth | 16bit |
| Video frame rate | 60Hertz |
| Display refresh rate | 1920Hertz |
| Input voltage (nominal) | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz |
| Input power (max) | 1200 Watts/ cabinet |
| Input power (typical) | 480 Watts/ cabinet |
| Lifetime (50% brightness) | ≥100000 |
| Red wavelength (dominant) | 620~625 |
| Green wavelength (dominant) | 525~530 |
| Blue wavelength (dominant) | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber |
| Mounting system | Fixed with 4pcs M10 bolts |
| Controller | NOVA |
